Lightning arresters (LAs) play a critical role in protecting electrical power systems and telecommunications systems from the damaging effects of lightning. By providing a low-impedance path to ground for lightning surges or transient voltages, they safeguard vital components such as transformers, transmission lines, and home appliances. However, their failure can lead to catastrophic damage, making regular testing and monitoring essential for ensuring the reliability of these devices.
This blog delves into the theory behind lightning arresters, their common failure modes, and advanced methods for monitoring their health.

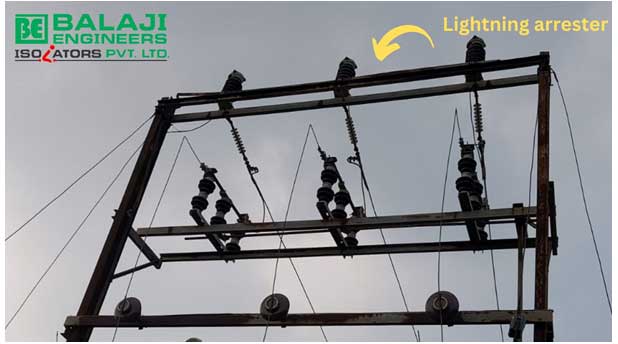

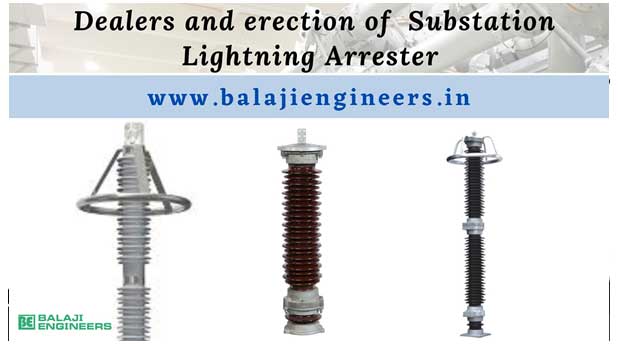

A lightning arrester is designed to protect insulation and conductors in electrical systems by diverting high-voltage surges to the ground. When a lightning surge or switching surge travels along a power line, the arrester intercepts it and diverts the current to the ground, preventing it from reaching critical components. Without adequate protection, lightning can introduce thousands of kilovolts into the system, causing severe damage.
Monitoring the health of lightning arresters is vital for ensuring their proper functioning. Key reasons include:
1.Prevention of Failure
Failure of LAs can lead to extensive damage to electrical infrastructure.
2.Aging and Degradation
Over time, the ZnO discs in arresters degrade due to continuous stress, increasing the likelihood of failure.
3.Leakage Current as an Indicator
Monitoring leakage currents (resistive and capacitive components) helps assess the health of the arrester.
Several parameters can indicate the condition of a lightning arrester:
1.Third Harmonic Resistive Current:A key indicator of ZnO degradation
2.Total Resistive Current: Reflects the power loss due to resistive components
3.Total Leakage Current: Includes both resistive and capacitive components.
4.Voltage-Current (V-I) Angle: Provides insights into the arrester's impedance characteristics.
5.Watt Loss:: Indicates energy dissipation within the arrester.
To overcome the shortcomings of conventional monitoring, advanced diagnostic methods focus on the resistive current component. These methods include:
1.Using Voltage Signal as Reference: Ensures accurate separation of capacitive and resistive components.
2.Capacitive Compensation: By combining leakage current from all three phases, capacitive components are canceled out.
3.Third Harmonic Analysis: Detects harmonic components in leakage current caused by ZnO degradation.
4.Direct Power Loss MeasurementProvides a direct indicator of arrester health.
Modern diagnostic instruments can measure the resistive component of the leakage current without de-energizing the arrester. This ensures reliable measurements and prevents failures in high-voltage systems ranging from 66 kV to 765 kV.
Lightning arresters can fail due to:
1.Aging of ZnO Discs: Long-term stress leads to degradation.
2.High Energy Surges: Intense surges beyond the arrester's capacity.
3.Improper Installation or Maintenance:Reduces arrester effectiveness.
4.Environmental Factors: Moisture ingress and pollution can compromise arrester performance.
5.Improper earthing : Improper earthing is one of the reason of Lighting arrester failure .
1.Regular Monitoring: Periodic measurement of resistive leakage current.
2.Advanced Diagnostic Tools: Use systems based on voltage reference principles.
3.Replacement Policy:Replace arresters showing significant resistive current variations.
4.Environmental Protection: Use arresters with appropriate sealing to prevent moisture ingress.
5.High Quality Sensitive Lighting Arresters – By using reputed and branded manufacturer of Lightning arrester . In India Balaji Lighting arresters is a leading Lightning arrester manufacturers in India.
1.Visual Inspection:o Check for physical damage, contamination, or loose connections.
2.Leakage Current Test: o Measure leakage current using a clamp meter without disconnecting the arrester.
Compare readings with manufacturer’s specifications.
3.Insulation Resistance Test: Disconnect arrester and measure resistance using a megger.
4.Thermal Imaging: Detect hotspots using an infrared camera.
5.Discharge Counter Check: Verify counter readings for surge events.
6.Third Harmonic Analysis Measure harmonic components in leakage current to assess degradation.
Frequency: Monthly or quarterly
What to Check:Cracks, chips, or damages in the lightning arrester housing.
Corrosion or discoloration on terminals and connections.
Proper grounding wire connections.
Accumulated dust, dirt, or bird droppings.
Procedure:Use a soft cloth or brush to remove dirt and dust.
For tough stains, use a non-corrosive cleaning agent.
Why: Dirt and contaminants can cause leakage currents and reduce efficiency.
Tools Required:Megger or Insulation Tester.
Disconnect the arrester from the circuit.
Measure insulation resistance between the terminal and ground.
Compare readings with manufacturer specifications.
Why: Low insulation resistance indicates internal degradation
Purpose: Identify deterioration in the arrester’s protective capabilities.
Procedure:Use a clamp meter to measure leakage current on the ground lead.
Abnormal or rising current levels indicate potential internal damage.
Why: To detect overheating in the arrester due to internal faults or loose connections.
Perform thermal scanning during operation.
o Look for hotspots and address them immediately.
Ensure the ground resistance meets substation standards (< 5 ohms in most cases).
Tighten loose connections and replace damaged ground wires.
Replace the arrester if:
The insulation resistance is below the acceptable range.
It shows physical damage or frequent tripping during surges
Leakage current exceeds the manufacturer's permissible limits.
Keep a log of all inspections, test results, and maintenance activities.
Document any abnormalities and corrective actions taken.

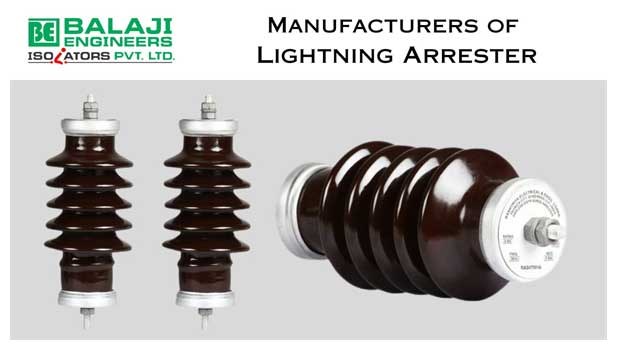

Looking for reliable lightning arrester manufacturers in India? Balaji Engineers stands out as a leading manufacturer of high-quality lightning arresters. Renowned for its exceptional performance, the Balaji Engineers lightning arrester brand is trusted across diverse applications, including:
Solar Power Plants
Windmill Substations
Industrial Substations
Balaji Engineers’ products are engineered to provide robust protection against electrical surges, making them an ideal choice for renewable energy projects and industrial setups.
Lightning arresters are indispensable for protecting electrical systems from the devastating effects of lightning. However, their effectiveness hinges on regular monitoring and timely maintenance. Advanced diagnostic techniques focusing on resistive leakage current and harmonic analysis offer reliable methods for assessing arrester health and preventing failures. By adopting these measures, utilities can ensure the longevity and reliability of their electrical infrastructure.
For robust and reliable solutions, Balaji Engineers offers a range of high-quality lightning arresters designed for diverse applications in power systems. With a commitment to excellence, Balaji’s products ensure superior performance and reliability under the most demanding conditions.
