Manufacturer of Isolators / Stockiest of Over Head Line Materials / Govt Contractors.

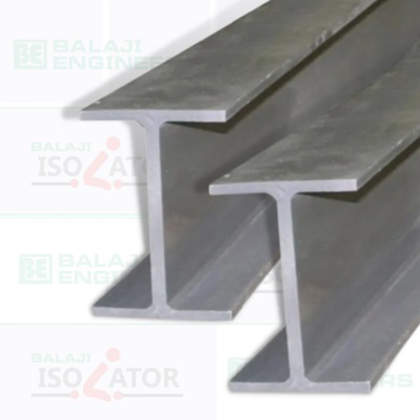

RSJ poles are similar to steel beams in size. It is made using the hot rolled method. It's used in transmission lines, power substations, and base frames. RSJ stands for Rolled Steel Joist. It comes in four sizes: 100 x 116mm, 175 x 85mm, 152 x 152mm, and 125 x 70mm. It is further classified in STD, LIGHT (Standard, Light).
| RSJ Pole Size | Weight / Meter |
|---|---|
| 116 x 100 Std | 23kg |
| 116 x 100 Light | 21 Kg |
| 125 x 70 Std | 13.50 |
| 125 x 70 Light | 11.50 |
| 152 x 152 Std | 37.10 |
| 152 x 152 Light | 34.00 |
Balaji Engineers is a one of the leading stockiest of RSJ Poles in Maharashtra . We carry huge stock of RSJ Pole at our MIDC Kolhapur facility . We also provide testing and inspection of RSJ poles if required by Contractor or Electrical boards . We can provide truck load directly to site or store’s location
Weight of the RSJ poles is an important consideration that shouldn't be disregarded when installing RSJ poles. Overweight will increase project costs, while underweight could cause issues with pole erection.
Normally, LT Transmission Lines are Erected with 125 X 70 mm in Height of 8 Meter, 9 Meter, 10 Meter, and 11 Meter, whereas 11 kv HT Lines are Erected with 100 x 116 Poles in Height of 9 Meter, 10 Meter, 11 Meter, and 12 Meter. 152 x 152 RSJ Poles in the sizes of 10 meter, 11 meter, 12 meter, and 13 meter are used to erect a 33 kv HT line.
We are stockiest of RSJ poles for 125 x70 , 100 x 116 , 152 x 152 RSJ poles , Dealers of RSJ Poles in Maharastra ,Karnataka, Kerala ,Telangana ,Andrapradesh , Tamil nadu , Odisha ,Bihar , Madhyapradesh ,
