Balaji Engineers Isolators Pvt Ltd is one of the largest manufacturers of isolator operating mechanism boxes in India. With the brand name "Balaji Isolator", they specialize in producing boxes for various voltage levels, ranging from 11kv to 220kV. Their product range includes railway isolator boxes, substation isolator operating boxes, motor drive operating boxes, and manual operating boxes of isolators. In this ultimate guide, we will cover everything you need to know about operating mechanism boxes for isolators, from their functions and components to their installation and maintenance. Whether you are a professional working in the electrical industry or simply interested in understanding the intricacies of isolator operation,
Manual Operated Box With Key Interlock
Motor Operated Mechanism Boxes
Manual Reduction Gear Boxes
Manual Operated Mechanism Boxes
Railway Isolator operating boxes
One of the key advantages of motor drive operated isolators is their enhanced control over the isolation process. These isolators are equipped with motor-driven mechanisms that provide smooth and precise disconnecting operations, ensuring that circuits are isolated safely and efficiently. This level of control not only minimizes the risk of electrical shock but also reduces the chances of damage to equipment during maintenance or repair activities.
Another benefit of motor drive operated isolators is their ability to handle high loads. These isolators are designed to withstand heavy-duty applications and can handle high voltage and current ratings, making them suitable for use in Distribution substation , Transmission Substation and industries such as manufacturing, power generation, and oil and gas for Industrial HV substations.
One notable feature of motor drive operated isolators is their intuitive control panel. This panel allows users to easily monitor and manage the isolators' operation, ensuring safe and accurate disconnecting operations. Additionally, the control panel often includes indicators and alarms to alert users of any abnormalities or malfunctions, further improving safety.
Another important component of motor drive operated isolators is the motor-driven mechanism itself. This mechanism is responsible for the smooth and precise disconnecting operations, minimizing the risk of electrical shock and equipment damage. It is designed to withstand heavy loads and high voltage and current ratings, ensuring durability and reliability in demanding industrial applications. 3Ph Induction Motor to achieve best torque-speed characteristics. The operating voltage 220V / 110V DC for DC motors & 415V for 3Ph Induction Motor. Magnetic contactor type of starters suitable for direct-on-line duty is provided for control of motors.
Motor drive operated isolators often come with advanced features such as remote operation and monitoring capabilities. This allows technicians to control and monitor the isolation process remotely, improving efficiency and safety in situations where direct access to the isolator is restricted or hazardous.
In addition, motor drive operated isolators may be equipped with communication capabilities. This allows for remote operation and monitoring, enabling technicians to control and monitor the isolation process from a safe distance. This feature is particularly valuable in situations where direct access to the isolator is restricted or hazardous.

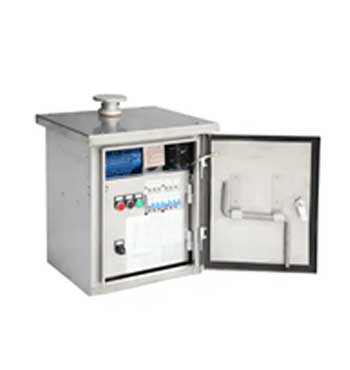

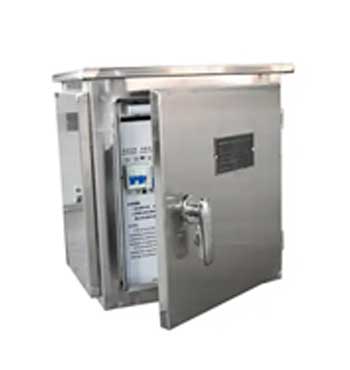

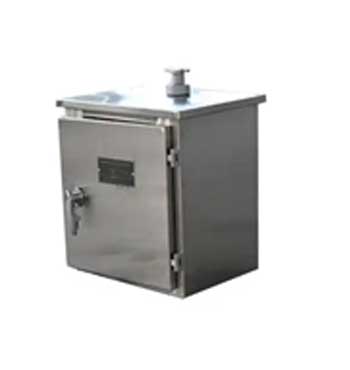

Motor drive operating boxes are made up with Aluminium , SS , MS Powder coated material as per specification given by electrical boards .
| Voltage level | 11kV,22kV,25kV, 33kV,66kV,110kV,132kV,220kV |
|---|---|
| Type | 4 NO 4 NC , 6 NO 6 NC , 8 NO 8 NC , 10 NO 10 NC , |
| Control Voltage | 110 DC , 220 DC |
Manual gear Operating mechanism boxes are equipped with gear mechanisms that provide disconnecting operations with help of gears. These boxes are comparatively light weight and widely used isolator .
These isolators are designed to withstand medium heavy-duty applications and can handle high voltage and current ratings, Manual gear Operating mechanism suitable for where requirement of remote operation of Isolator is not too important or necessary. In this boxes electrical technician can operate the mechanism box manually which is located near to the Isolator disconnector switch . Manual gear Operating mechanism boxes are used in Distribution substation , Transmission Substation and private industry power substation etc.
Manual gear Operating mechanism boxes are made up with Aluminium , SS , MS Powder coated material as per specification given by electrical boards .
| Voltage level | 11kV,22kV,25kV, 33kV,66kV,110kV,132kV,220kV |
|---|---|
| Type | 4 NO 4 NC , 6 NO 6 NC , 8 NO 8 NC , 10 NO 10 NC , |
Manual Operating mechanism boxes are equipped with rotary mechanisms that provide disconnecting operations. These boxes are used smaller voltages 11kv,22kv,33kv isolators.
Manual gear Operating mechanism boxes are made up with Aluminium , SS , MS Powder coated material as per specification given by electrical boards .Voltage level : 11kV,22kV, 33kV
Once the isolator is securely mounted, you can proceed with the electrical connections. Follow the provided wiring diagram, connecting the appropriate cables to the designated terminals. It is crucial to ensure that all connections are secure to prevent any electrical faults or hazards.
After completing the electrical connections, it is time to test the isolator. Switch it on and run a functional test to ensure that all components are working correctly. Pay close attention to the disconnecting operations, ensuring that they are smooth and precise.
Once you have confirmed that the isolator is functioning correctly, it is ready for operation. Familiarize yourself with the control panel and any additional features that the isolator may have. Ensure that you understand how to operate the isolator safely and efficiently.
Remember, always refer to the manufacturer's instructions and guidelines for specific installation and operating procedures. Following these guidelines will ensure that your isolator functions optimally, enhancing safety and productivity in your industry.
Motor drive operated boxes , Manual gear operated boxes are connected to operate single or gang operation of Isolator and Earth blade . Operation boxes are installed on structure as per Isolator manufacturers guidelines and instructions .
Motor drive operated boxes , Manual gear operated boxes are connected to operate single or gang operation of Isolator and Earth blade . Operation boxes are installed on structure as per Isolator manufacturers guidelines and instructions .
Faulty Switch Operation : If the switch on your manual operated isolator fails to turn off or on properly, it could be due to a loose connection or mechanical issue. First, check for any loose or damaged wiring connections. If the connections are secure, inspect the switch itself for any signs of damage or wear. In some cases, lubricating the switch mechanism may help resolve the issue. If the problem persists, it is recommended to consult a qualified electrician for further diagnosis and repair.
Difficulty in Turning the Handle : Over time, the handle of a manual operated isolator may become hard to turn, making it challenging to operate. This could be caused by a buildup of dirt, dust, or debris in the mechanism. To address this issue, start by thoroughly cleaning the handle and the surrounding area. If the problem persists, it may be necessary to lubricate the handle mechanism with a suitable lubricant. Only use lubricants recommended by the manufacturer to prevent damage to the isolator. If the handle still does not turn smoothly, it is advisable to seek professional assistance.
Excessive Heat or Burning Smell : If you notice an unusual amount of heat or a burning smell coming from your manual operated isolator, it is vital to address the issue immediately. Excessive heat or burning indicates a potential wiring or connection problem, which can be hazardous if left unattended. Turn off the power supply to the isolator and visually inspect the wiring connections for any signs of overheating or burning. If you spot any damaged or burnt wiring, contact a licensed electrician to repair or replace the affected components.
Excessive noise : If you notice excessive noise coming from your operating mechanism box, it may be due to insufficient lubrication or worn-out components. Apply the recommended lubricant as specified by the manufacturer and check for any signs of wear and tear. If the problem persists, consider replacing any damaged parts.
Electrical malfunctions : If you experience electrical malfunctions such as flickering lights or intermittent operation, check the electrical interlocks and connections for any loose or damaged wires. Ensure that all electrical components are properly secured and consult a qualified electrician if necessary.
Mr. Suhas Bhandari, Director and Founder of Balaji Engineers Isolators Pvt Ltd, Kolhapur, Maharashtra, is the writer of this informative blog.As a well-known manufacturer of isolators, Balaji Engineers Isolators Pvt Ltd has been in the electrical solution business since 2004.
The company is based in MIDC Shiroli Kolhapur and has a fully-flagged high-end machinery setup with sufficient testing facilities. High-quality isolators that have been approved and certified by ERDA, CPRI, and NABL labs are the specialty of Balaji Engineers Isolators Pvt Ltd.
An isolator manufacturer, Balaji Engineers Isolators Pvt Ltd, develops a wide range of off-load isolators that are used in infrastructure projects, wind and solar projects, H T consumers, MSEDCL tenders, industrial substations, distribution substations, EV charging substations, and distribution lines.Balaji isolators are technically precise and honest in working on field .
We additionally manufacture turn-and-twist isolators and banging isolators. Contractors in the electrical industry prefer our isolators for the erection of substations because of our technically sound design and user-friendly technology. In addition, Balaji Engineers manufactures isolator spare parts for any company, including Crompton Greaves and Siemens.
