Mechanical and Electrical Interlocks between Isolators and VCBs in Electrical Systems

In the world of electrical engineering, safety and reliability are paramount. One of the critical aspects of ensuring both is the proper integration of interlocks between Isolators and Vacuum Circuit Breakers (VCBs). These interlocks can be mechanical, electrical, or a combination of both, and they play a vital role in controlling and protecting electrical circuits.


Mechanical and Electrical Interlocks Between Isolators

Their correct operation can prevent dangerous situations, ensuring both personnel safety and system integrity. In this blog, we will explore the significance, function, and implementation of mechanical and electrical interlocks between Isolators and VCBs.

What is an Isolator?

An isolator is a manually operated mechanical switch that isolates a part of the electrical circuit from the system as needed. It is used primarily for ensuring that a circuit is completely de-energized for maintenance or service purposes. Isolators are often employed in high-voltage applications, such as substations and industrial environments, where it is crucial to maintain clear and safe access to electrical equipment. For more detail of Isolators ,please visit : www.balajienigneers.in/isolators

What is a Vacuum Circuit Breaker (VCB)?

A Vacuum Circuit Breaker (VCB) is a type of circuit breaker that extinguishes the arc that forms when the circuit is interrupted by separating the contacts within a vacuum. VCBs are highly reliable and are used in medium to high voltage systems to protect electrical circuits from damage due to overloads, short circuits, or other faults. The vacuum medium ensures rapid arc quenching, making VCBs highly effective in protecting electrical infrastructure.

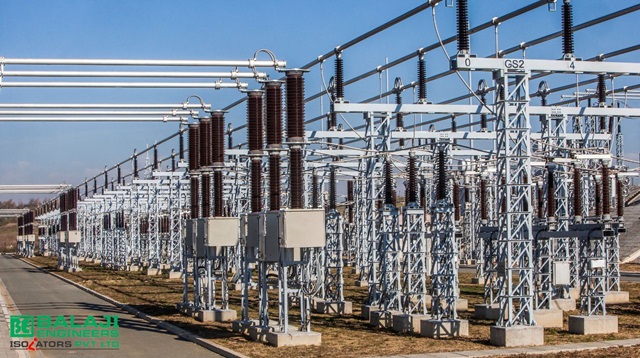

33kv vacuum circuit breaker vcb

33kv Vacuum Circuit Breaker VCB


What is Mechanical Interlocks in Isolator and VCB?

Mechanical interlocks are safety mechanisms that physically prevent certain operations in an electrical system from occurring out of sequence. In the context of isolators and VCBs, a mechanical interlock prevents an isolator from being opened or closed unless the VCB is in a safe state (open or closed as required). This prevents dangerous situations where an isolator might be operated while the circuit is still live, which could lead to severe electrical accidents or equipment damage.

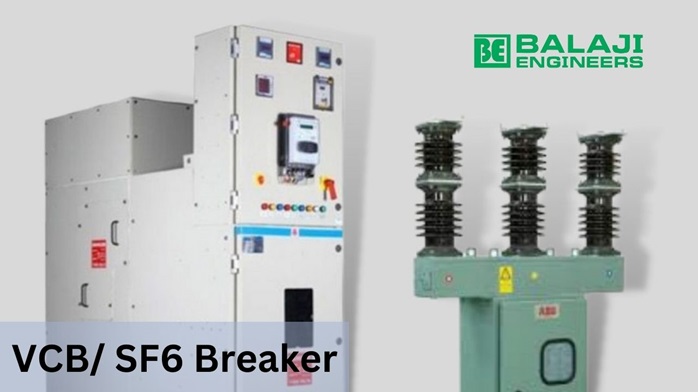

vcb sf6 breaker

The interlock system between an isolator and a VCB is typically designed so that :


VCB Closed, Isolator Open : The isolator cannot be operated to close when the VCB is closed, ensuring that the circuit is not live when the isolator is being engaged.

VCB Open, Isolator Closed : The isolator can be opened only when the VCB is open, ensuring the circuit is de-energized before any disconnection occurs.

These mechanical interlocks typically involve a combination of physical locking mechanisms and control circuits that ensure operations occur in the correct sequence, thereby maintaining safety.

What is Electrical Interlocks in Isolator and VCB?

While mechanical interlocks rely on physical mechanisms to enforce safe operation, electrical interlocks use electrical signals and control circuits to achieve the same purpose. Electrical interlocks add an additional layer of protection, especially in more complex systems where multiple interdependent operations are involved.


Electrical interlocks are implemented using control circuitry that monitors the status of the VCB and the isolator. The interlock circuit can be configured to:


Prevent the Isolator from Closing if the VCB is Closed : If the VCB is closed (circuit is live), the electrical interlock ensures that the isolator cannot be engaged, preventing potential accidents.

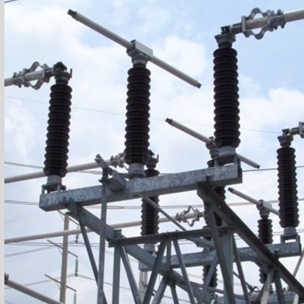

33 kv 800 amp isolator

33 kv 800 amp isolator

Prevent the VCB from Closing if the Isolator is Open : If the isolator is open (circuit is disconnected), the electrical interlock ensures that the VCB cannot be closed, avoiding energizing an open circuit.


Enable Remote Monitoring and Control : Electrical interlocks can be integrated with remote control systems, allowing for monitoring and control from a central location, enhancing operational efficiency and safety.


What is castle key interlocking in isolator and vcb breaker?

Sequence of Operation :

1. The Isolator is closed.
2. The Castle Key is inserted into the Isolator.
3. The Isolator is opened, and the key is released.
4. The key is then inserted into the VCB.
5. The VCB can now be closed.


33 kv 800 amp isolator

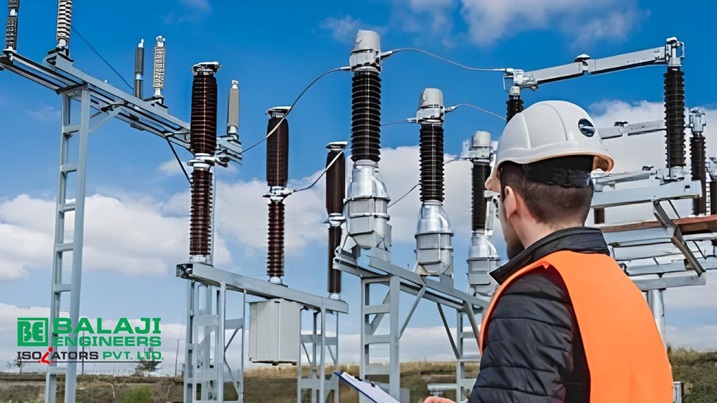

Isolator VCB Interlock Mechanical and Electrical


Description:

Isolator and VCB Interlock : When the Isolator is in the closed position, the Castle Key cannot be removed, preventing the VCB from being operated. Once the Isolator is opened, the key can be removed and inserted into the VCB, allowing it to be closed. This ensures that the VCB can only be operated when the Isolator is in a safe state, preventing accidental energizing of the circuit.


diagram

An isolator can be interlocked with a castle key to ensure safe and controlled operation of electrical systems. The purpose of this interlocking system is to prevent the operation of the isolator unless specific safety conditions are met. Here's how the interlock system works:

Steps to Interlock an Isolator with a Castle Key:


1. Initial Position Isolator Closed:

The isolator is in the closed position, meaning the circuit is live.


The castle key is locked in the isolator mechanism, preventing its removal.


The Vacuum Circuit Breaker (VCB) is typically closed in this state.



2. Opening the Isolator :

To open the isolator, the VCB must first be opened (de-energizing the circuit).


Once the VCB is open, the key can be released from the VCB interlock mechanism.


The released key can now be inserted into the isolator’s interlock mechanism.



3. Removing the Key :

The isolator is now opened, disconnecting the circuit.


The act of opening the isolator allows the key to be removed.


With the key removed from the isolator, the isolator cannot be closed again until the key is reinserted.



4. Inserting the Key into the VCB :

The key can now be inserted into the VCB interlock mechanism.


This allows the VCB to be closed, completing the circuit.


However, until the key is removed, the isolator cannot be operated.



5. Final Position - Isolator Open :

The key remains in the VCB, ensuring that the isolator cannot be closed while the circuit is live.


The key must be removed from the VCB before the isolator can be closed again.



In standard engineering practice, interlocking mechanisms can be categorized into two primary types: mechanical interlocking and electrical interlocking.


1. Mechanical Interlocking : This method employs a Castell key system, ensuring that the operation of one device is dependent on the status of another. Specifically, in the context of isolators and vacuum circuit breakers (VCBs), the Castell key is locked with the isolator, which can only be operated when the VCB is in the closed position. Since the isolator is an offload device, this arrangement ensures that the isolator cannot be opened under load conditions. The key is transferred from the isolator to the VCB, and once locked, the VCB is ready for operation (on/off). This method secures both the isolator and the VCB, preventing unintended operations and enhancing system safety through mechanical interlocking.


2. Electrical Interlocking : This approach is feasible when the isolator disconnector is equipped with a motor-operated mechanism. Through control wiring, the system is designed such that the isolator can only be operated (opened or closed) when the circuit breaker is in the correct position (typically closed). Conversely, if the isolator is open, the VCB cannot be closed due to the interlock logic integrated through control wiring. This setup provides an additional layer of safety, ensuring that technicians working in substations are protected, and that equipment such as isolators and VCBs are safeguarded against improper operation through an electromechanical interlocking system.


This combination of mechanical and electrical interlocking mechanisms ensures both operational safety and equipment protection within substations.
