High voltage switchgear is an essential component in electrical power systems, responsible for controlling and protecting the flow of electricity. However, it is not uncommon for high voltage switchgear and its associated current transformers (CT) and potential transformers (PT) to experience failures. These failures can result in power outages, equipment damage, and safety hazards. Understanding the causes of these failures is crucial for effective maintenance and prevention strategies. Here are some common causes of high voltage switchgear and CT PT failures:
Similar to PTs, CTs can also experience IP protection failure, allowing moisture or dust to enter the CT housing. This can lead to insulation breakdown and inaccurate current measurement. Regular inspection and maintenance are crucial to prevent IP protection failures in CTs.

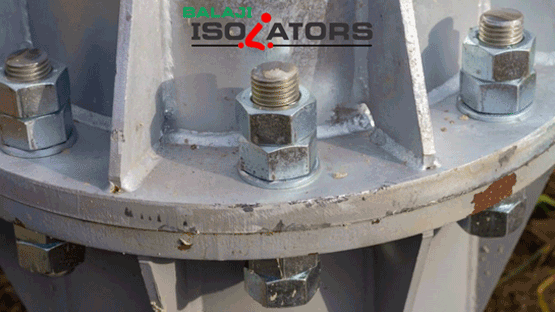

CTs also use oil as a cooling and insulating medium. Oil leakages can occur due to aging or faulty seals, resulting in decreased insulation performance and compromised accuracy of current measurement. Regular inspection and maintenance, including seal replacement, can help prevent oil leakages in CTs.

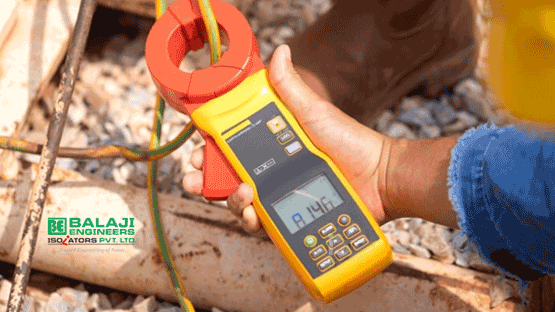

Proper grounding is essential for the safe and efficient operation of substation equipment, including CTs. If the earthing resistance is too high, it can increase the risk of voltage surges, induce current in the CT's core, and cause measurement inaccuracies. Regular testing and maintenance of the grounding system can ensure that the earthing resistance remains within acceptable limits.
Overloading occurs when the switchgear is subjected to electrical currents beyond its rating. This can happen due to increased demand, equipment malfunction, or faulty circuit designs. Overloading puts excessive stress on the switchgear components, leading to insulation breakdown, contact welding, and short circuits.
Insulation breakdown is one of the most common causes of switchgear failures. Over time, insulation materials can deteriorate due to environmental factors, such as moisture, temperature variations, and contaminants. Insulation failure can result in short circuits, arcing, and phase-to-ground faults.
Contaminants, such as dirt, dust, oil, and moisture, can accumulate on switchgear surfaces and within the CT PT systems. Contamination interferes with proper electrical conductivity and can lead to insulation breakdown, poor contact resistance, and equipment malfunction.
Like any other electrical equipment, high voltage switchgear and CT PT systems experience aging and wear over time. Wear can occur due to regular operations, thermal cycling, mechanical stress, and vibrations. Aging and wear can cause degradation of insulation, contacts, and operating mechanisms, leading to reduced reliability and performance.
Inadequate or improper maintenance practices can contribute to switchgear failures. Examples include insufficient lubrication, poor contact cleaning, neglecting to perform regular inspections, and not following manufacturer-recommended maintenance procedures. Incorrect maintenance procedures can lead to increased wear and tear, poor electrical connections, and increased failure rates.
Environmental conditions can significantly impact switchgear and CT PT performance. Extreme temperatures, humidity, saltwater exposure, and corrosive atmospheres can accelerate the deterioration of insulation, contacts, and other components. Environmental factors can weaken the structural integrity of the equipment, increasing the risk of failures.
CT PT required firm connection at their terminal end , It may cause big impact over the equipment like CTPT if it is not tight enough.

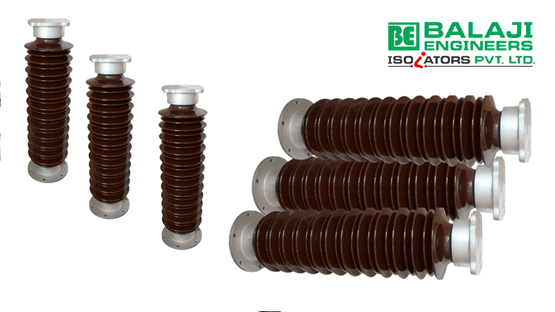

CT PT are very sensitive equipment’s in the electrical system , These equipment’s act as a fuse if access current passes through the equipment due to non working of Lightning Arrester before CT PT connected to incoming supply . We need to install proper Lightning arrester of Best quality like Balaji Lighting arresters , Lighting arrester manufactures in India.(Distribution Type Lightning Arrester)

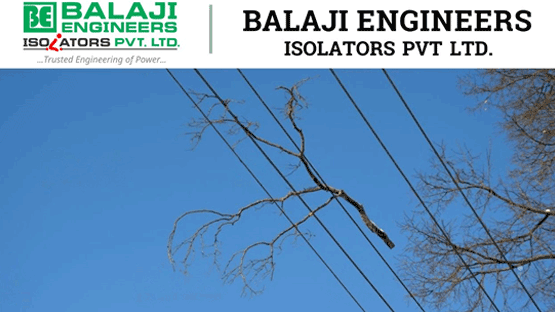

As saw that CT PT are very sensitive equipment’s in the electrical system , by any reasons if tree branches , bird fault creates on supply power line which increases the normal current voltage ratio and converted into fault to press excess pressure on line which ultimately damages to CT or PT which are installed in system .
Regular inspection and testing of the switchgear and CT PT systems to identify signs of wear, contamination, or insulation breakdown.
Implementation of proper maintenance practices, including lubrication, cleaning, and periodic calibration of CT PT systems.
Monitoring of temperature, humidity, and environmental conditions to mitigate the impact of adverse conditions.
Adequate training and education for personnel responsible for switchgear maintenance and operation.
Adherence to manufacturer guidelines and industry standards for installation, operation, and maintenance.
Implementation of proactive maintenance strategies, such as condition monitoring and predictive maintenance.
Collaboration with equipment manufacturers to address any design or manufacturing issues.
By understanding and addressing the causes of high voltage switchgear and CT PT failures, organizations can ensure the reliability, safety, and efficiency of their electrical power systems. Timely maintenance and proactive measures can extend the lifespan of the equipment and minimize the risks associated with failures.
