Manufacturer of Isolators / Stockiest of Over Head Line Materials / Govt Contractors.

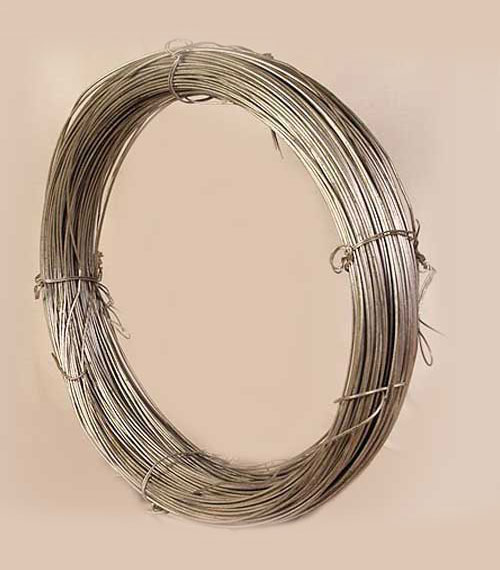

We offer G I Strip As well as G I wire and G I Plate, High Quality material is used for various application in Distribution system, We are one of the leading suppliers in Hot Dip Fabrication Material suppliers and Costal areas in Maharashtra and Goa, After strict quality control manufactured fabrication material is supplied to clients with high level finishing of Hot Dip galvanized Process. We render stock of Hot Dip Galvanized Strip (Flat), Angle, Channel, Nutbolts, Clamps etc, GI Wire is basically used for pole earth and Road cross for conductor guarding by GI wire with help of pair of 50 x 50 x 6 Angle. GI Strip is basically used in Substation for earthing purpose of equipment’s,
| G.1. EARTHING PATTI / STRIPS | |||||
| SIZE | WT PER MTRS | SIZE | WT PER MTRS | ||
| KGS. | GMS. | KGS. | GMS. | ||
| 20mm x 3mm | 0 | 490 | 40mm x 3mm | 0 | 964 |
| 20mm x 6mm | 0 | 980 | 40mm x 5mm | 1 | 476 |
| 25mm x3mm | 0 | 600 | 40mm x 6mm | 1 | 920 |
| 25mm x 5mm | 0 | 970 | 50mm x 3mm | 1 | 280 |
| 25mm x 6mm | 1 | 300 | 50mm x 5mm | 1 | 920 |
| 32mm x 5mm | 1 | 210 | 50mm x 6mm | 2 | 560 |
| 32mm x 6mm | >1 | 625 | 62mm x 6mm | 3 | 70 |
| G I PLATE | |
| 600 x 600 x 3 mm | 10 Kg App. |
| 600 x 600 x 4 mm | 12 Kg App. |
| 600 x 600 x 5 mm | 15 Kg App. |
| 600 x 600 x 6 mm | 18 Kg App. |
| 600 x 600 x 12 mm | 36 Kg App. |
| 1200 x 1200 x 6 mm | 70 Kg App. |
| 1200 x 1200 x 12 mm | 140 Kg App. |
| 300x 300 x 6 mm | |
| 300x 300 x 3 mm | |
In MSEDCL 6 and 8 SWG G I wire is used for earthing purpose as well as guarding of pole to safe the conductor on Road etc places.
