Manufacturer of Isolators / Stockiest of Over Head Line Materials / Govt Contractors.
Balaji Engineers Isolators Private Limited is a leading manufacturer of Isolator Disconnectors in India, with a rich history in the electrical solutions industry since 2004. Based in Kolhapur M.I.D.C., Balaji Isolators is equipped with state-of-the-art machinery and a comprehensive In house testing facility for Isolator Disconnectors. Our high-quality Isolators are approved and certified by ERDA and CPRI Testing Laboratories (NABL).
Our Isolators are manufactured under very strict quality control, maintaining high precision in engineering .At present we manufacture wide range of products including 11kV,22kV,33kV,110kV,132kV,220 kV Isolator Disconnector with motor drive control boxes, manual control boxes, and isolator spare parts as per IS/IEC 62271-102, as amended to date. Balaji Isolators R & D team is focused on Isolators on field performance and its working as well as alignment of Copper contacts .
Balaji Isolators are widely used in various sectors such as infrastructure, windmill park , solar substations, HT Consumer, Industrial substation , Substation maintenance , Industrial Substation, EV Charging Substation, Distribution Line, and transmission substations. We are approved vendor in many states in pan India. Balaji Isolators takes pride in providing technically accurate and reliable on-field performance. Additionally, we also manufacture Isolator spare parts for renowned companies such as Crompton Greaves and Siemens.
HV tester 100 kV (for high voltage testing)
Temperature rise test setup
Hardness tester
Contact resistance meter CRM-100
Plating micro checker
Surcface checker
Megger tester (for insulation test)
Mechanical endurance setup
Lightning Impulse Voltage withstand Test
Dry Power Frequency Voltage Withstand Test
Wet Power Frequency Voltage Withstand Test
Temperature Rise Test
Short Time Withstand Current and Peak Withstand Current Test on Mains and Earth
Mechanical Endurance Test
Balaji Engineers is a reputable manufacturer of switching and disconnecting isolation devices. We have a unique combination of cutting-edge machines and equipment and skilled manpower. Our pneumatic system allows for more precise manufacturing and assembly, and our power press machines with in-house tool kits increase our confidence in any new product modifications. The perfect finish of the row material increases the durability of the field product for heavy mechanical operations. Strict quality controls are implemented from row material selection to disconnector assembly.
Machine shop
Power Press shop
Tool Kit room
Welding shop
Pneumatic Assembly shop
Testing and Dispatch
The horizontal double-break disconnector is made up of three poles. Each pole consists of a frame, two supporting insulators at each end, and one rotating insulator in the centre that contains the main blade
The frame is made of a M S steel with the bearing housing and turntable installed in the centre. Two roller bearings support the turntable. To ensure a long lifetime, the bearing housing is sealed and filled with grease. The disconnector's steel components are all hot-dip galvanised.
The disconnectors can be equipped with insulators in accordance with required specifications of porcelain solid core insulator as well as Polymer Insulators . High quality insulators are used to perform long time duration .
The main blade is made up of two fixed contacts that are mounted on the supporting insulators and a moving blade that is mounted on the rotating insulator. The main contacts are housed within the main blade. They're made of copper and have a silver-plated finish. Each contact finger has stainless steel springs to ensure consistent contact pressure. Because the contacts are self-cleaning, the disconnector is suitable for installation in areas with harsh climatic conditions. Moving Contact play important role in disconnectors; their proper operation keeps isolators in good working order.
Isolator disconnectors and earthing switches are three-pole devices with either a motor-operated or a manual-operated drive mechanism. When only one drive mechanism is used for three-pole operation, the poles are linked together using adjustable coupling rods. The auxiliary contacts for position indication are also housed in the drive mechanism.
1) Manual operating system : Operating handle is provided with each
Isolator Disconnector switch for manual mechanism .

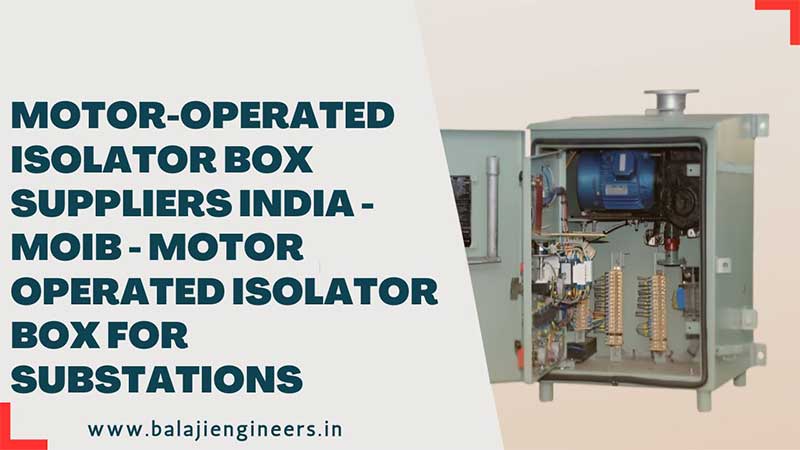

2) Special motorized operation box mounting arrangement provided
for motorized Isolator disconnector
Isolator Disconnectors and earthing switches are pre-assembled and adjusted as completely as possible in our factory. The design allows all disconnectors to be easily installed and adjusted on-site without the use of any special tools. Balaji Engineers provides step-by-step installation instructions as well as assembly drawings.
The Isolator disconnectors and earthing switches supplied by Balaji Engineers are designed so as to virtually maintenance free. To ensure a long and trouble-free service life, we advise that a visual inspection of the contacts and bearing points be carried out at regular intervals.
Maintenance of Isolators
Erection of Isolators
AMC of Isolators
Spare parts of the isolator
Control wiring of Motor drive isolator
Replacement of Fixed and moving contact
Retrofitting job of Isolator
Substation Equipment Erection
Isolators play a crucial role in electrical systems, ensuring the safety and smooth functioning of power distribution networks. In India, Balaji Isolators Isolators Private Limited is renowned for its comprehensive range of isolator services. As a leading isolator disconnector manufacturer, the company has been providing top-notch solutions to the electrical industry since 2004. With a wide range of isolators catering to various voltage levels, Balaji Isolators is well-equipped to meet the diverse needs of its customers.
One of the key services offered by Balaji Isolators is the maintenance of isolators. Regular maintenance is vital to ensure the optimal performance and longevity of these electrical devices. The company has a team of seasoned professionals who are well-versed in isolator maintenance techniques. They conduct thorough inspections, identify and rectify any issues, and carry out preventive measures to minimize the chances of breakdowns or failures. This proactive approach helps in reducing downtime and optimizing the overall efficiency of the electrical system.
Another essential service provided by Balaji Isolators is the erection of isolators. The company has the expertise and resources to handle the installation and commissioning of isolators of different voltage ranges, including 11kV, 22kV, 33kV, 66kV, 110kV, 132kV, and 220kV. From site survey and foundation preparation to wiring and final testing, Balaji Isolators ensures that the entire installation process is carried out meticulously, adhering to industry standards and regulations.
To ensure uninterrupted operations, it is crucial to have an annual maintenance contract (AMC) for isolators. Balaji Isolators offers comprehensive AMC services to its customers, covering routine inspections, preventive maintenance, lubrication, testing, and troubleshooting. By opting for an AMC, customers can enjoy the peace of mind that their isolators are being regularly monitored and maintained by experts, thereby minimizing the risk of unexpected breakdowns and ensuring the longevity of the equipment.
In addition to maintenance and erection, Balaji Isolators also specializes in providing spare parts for isolators. Over time, certain components of isolators may wear out or become damaged. In such cases, the availability of genuine and reliable spare parts becomes crucial. Balaji Isolators maintains an extensive inventory of high-quality spare parts, ensuring prompt replacement in case of any requirement. The company guarantees the quality and compatibility of its spare parts, helping customers restore the functionality of their isolators swiftly and efficiently.
Control wiring of motor drive isolators is another area where Balaji Isolators excels. Motor drive isolators are widely used in industrial applications to control and protect motors. Balaji Isolators has a dedicated team of skilled technicians who specialize in the control wiring of motor drive isolators. They meticulously handle the complex wiring and programming involved, ensuring seamless integration into the electrical system.
with years of experience and expertise, Balaji Isolators is also well-suited for the replacement of fixed and moving contacts in isolators. Over time, constant usage may cause these contacts to wear out or deteriorate, affecting the performance of the isolator. Balaji Isolators possesses the technical prowess to execute contact replacements efficiently, restoring the isolator to its optimal state.
Moreover, the company offers retrofitting jobs for isolators. In certain cases, customers may require upgrades or modifications to their existing isolators to meet evolving needs or changing regulations. Balaji Isolators undertakes retrofitting jobs, ensuring that the isolators are modified in adherence to the required safety standards and performance specifications.
Balaji Isolators extends its services to substation equipment erection. Substations are critical components of power distribution networks, and the installation of isolators within a substation requires expertise and precision. Balaji Isolators has a dedicated team that specializes in substation equipment erection, ensuring the efficient installation of isolators and other essential components.
Balaji Engineers Isolators Private Limited offers a comprehensive range of services for isolators in India. Whether it is maintenance, erection, AMC, spare parts, control wiring, contact replacement, isolator replacement, retrofitting jobs, or substation equipment erection, Balaji Isolators has the necessary expertise and resources to meet the requirements of its customers. With its commitment to quality and customer satisfaction, Balaji Isolators is a trusted name in the electrical solutions industry.
With Earth blade and Without earth blade With Support structure and without support structure

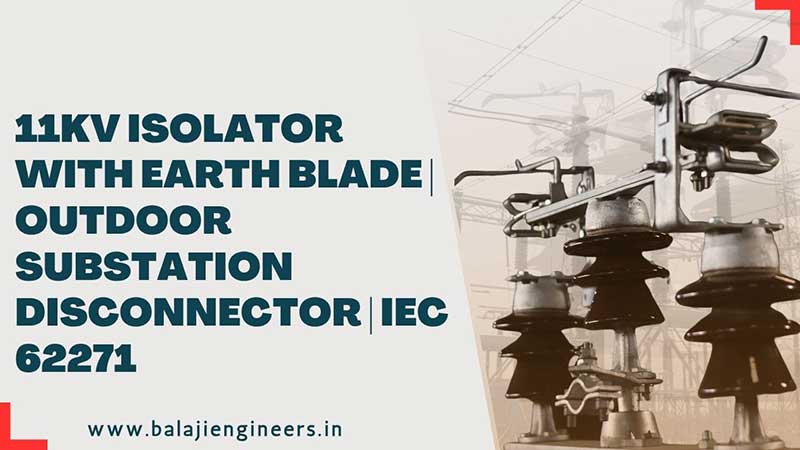

11kv Isolator Disconnector

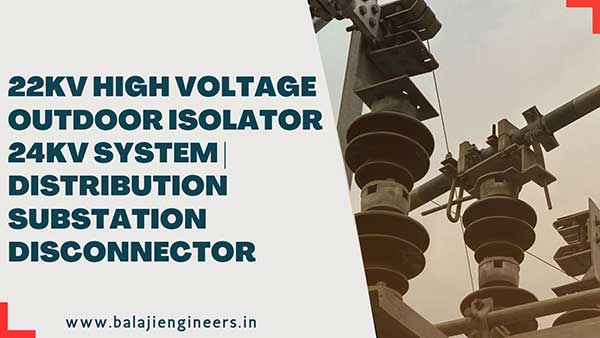

22kv Isolator Disconnector

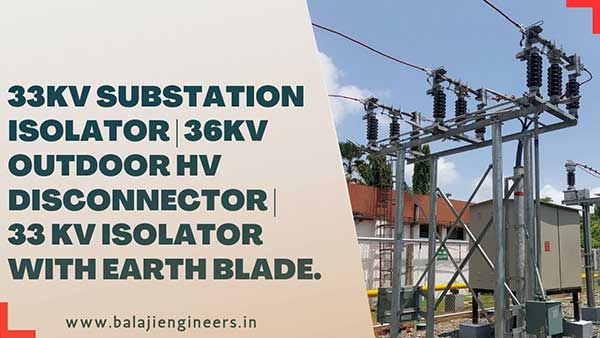

33kv Isolator Disconnector

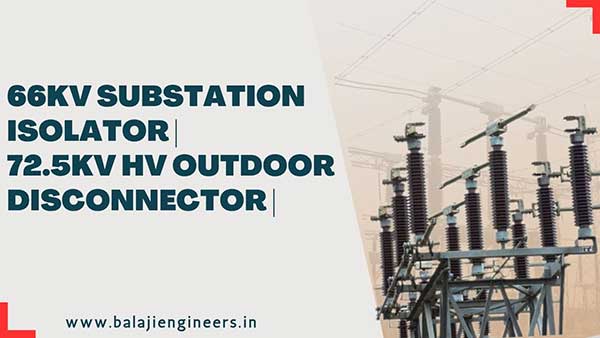

66kv Isolator Disconnector

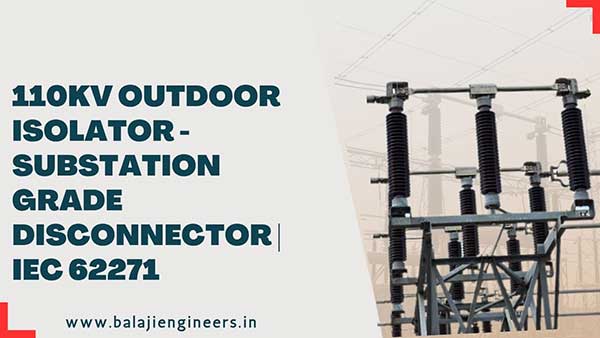

110kv Isolator Disconnector

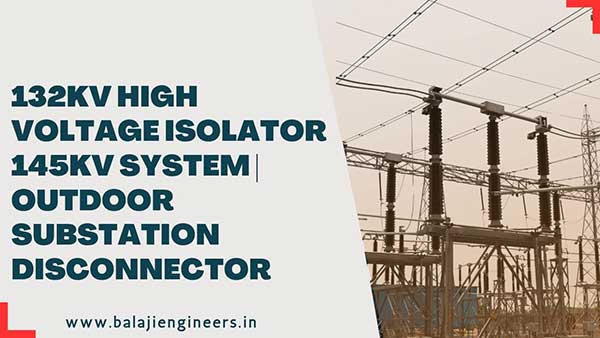

132kv Isolator Disconnector

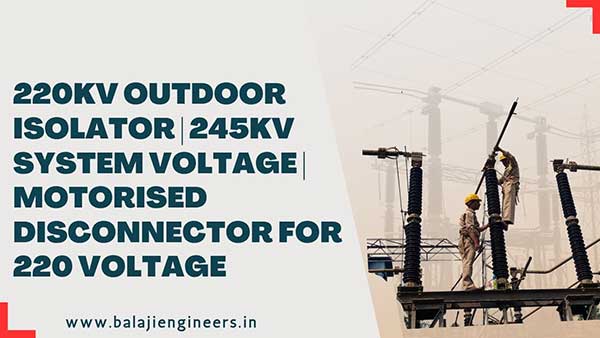

220kv Isolator Disconnector
Spare Parts of Isolator Disconnector
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 12 KV |
| 9 | Type of disconnect | DBCR |
| 10 | Rated normal current | 400 / 800 /1250 /1600 Amp |
| 11 | Short time current | 13.1 kA |
| 12 | Operation Type | Manual / Motorised |
| 13 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 24 KV |
| 9 | Type of disconnect | DBCR |
| 10 | Rated normal current | 400 / 800 /1250 /1600 /2000 Amp |
| 11 | Short time current | 31.5 kA |
| 12 | Operation Type | Manual / Motorised |
| 13 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 33 KV |
| 9 | Type of disconnect | DBCR |
| 10 | Rated normal current | 400 / 800 /1250 /1600 /2000 Amp |
| 11 | Short time current | 31.5 kA |
| 12 | Operation Type | Manual / Motorised |
| 13 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 66 KV |
| 9 | Highest System Voltage | 72.5 KV |
| 10 | Type of disconnect (AB) | DBCR |
| 11 | Rated normal current | 400 / 800 /1250 /1600 /2000 /2500 /3000 /3150 Amp |
| 12 | Short time current | 25 kA, 31.5 kA, 40kA |
| 13 | Operation Type | Manual / Motorised |
| 14 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 110 KV |
| 9 | Highest System Voltage | 123 KV |
| 10 | Type of disconnect (AB) | DBCR / CR |
| 11 | Rated normal current | 400 / 800 /1250 /1600 /2000 /2500 /3000 /3150 Amp |
| 12 | Short time current | 25 kA, 31.5 kA, 40 kA |
| 13 | Operation Type | Manual / Motorised |
| 14 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 132 KV |
| 9 | Highest System Voltage | 145 KV |
| 10 | Type of disconnect (AB) | DBCR / CR |
| 11 | Rated normal current | 400 / 800 /1250 /1600 /2000 /2500 /3000 /3150 Amp |
| 12 | Short time current | 25kA, 31.5 kA, 40kA |
| 13 | Operation Type | Manual / Motorised |
| 14 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
| Sr.No | Technical parameter | Specifications |
|---|---|---|
| 1 | Application | Outdoor |
| 2 | Isolator type | Offload Type |
| 3 | Mounting type | Horizontal type |
| 4 | Insulator Type | Porcelain and Polymer type |
| 5 | Rated Freq. | 50 Hz |
| 6 | Design of Isolator | Banging type / Turn and twist type |
| 7 | Specification Slandered | IS/IEC: 62271-102 |
| 8 | Rated voltage | 220 KV |
| 9 | Highest System voltage | 245 KV |
| 10 | Type of disconnect (AB) | DBCR/ CR |
| 11 | Rated normal current | 400 /800 /1250 /1600 /2000 /2500 /3000 /3150 Amp |
| 12 | Short time current | 25kA , 31.5 kA , 40 kA |
| 13 | Operation Type | Manual / Motorised |
| 14 | Foundation Structure | Pipe Type / Lactic type (Angle, Channel) |
Balaji Engineers offers all spares of any make disconnector from 11kV, 22kV, 33kV, 66kV, 110kV, 220kV, that may be necessary for maintenance of the disconnect. Any make isolator and customized Isolator spare parts are manufactured by Balaji Engineers
