Manufacturer of Isolators / Stockiest of Over Head Line Materials / Govt Contractors.
To cover all needs of costumer, We have Obtained sound stock of Copper material like
As per specified norms given by Board, We serve all material in Kg, For project enquiry we can provide bulk discount of Earthing Material. We maintain good quality copper products, We are regular suppliers of many Industrial Units, Panel Builders, and Electrical contractors,
Available with us a wide range of Copper Strip, These stripes are known for the features like are corrosion resistance, shock proof and long working life. Our range of copper stripes finds application in automatic machines, which enhances the production and reduces the wastage. Following are the specifications of our range:
For earthig of every electrical equipment s such as Metering Cubical, transformer, LBS/VCB, ACB, LT Panel, Motors, Machines, Generators etc all are required proper size of copper strip for its final end result of earthing,
| 20 x 3 | 540 gm per mtr |
| 25 x 3 | 675 gm per mtr/723-50X6 |
| 25 x 5 | 1/150 Kg p. mtr |
| 25 x 6 | 1/350 Kg p. mtr |
| 32 x 5 | 1/500 Kg p. mtr |
| 32 x 6 | 1/750 Kg p. mtr |
| 40 x 5 | 1/800 Kg p. mtr |
| 40 x 6 | 2/200 Kg p. mtr |
| 50 x 5 | 2/250 Kg p. mtr |
| 50 x 6 | 2/700 Kg p. mtr |

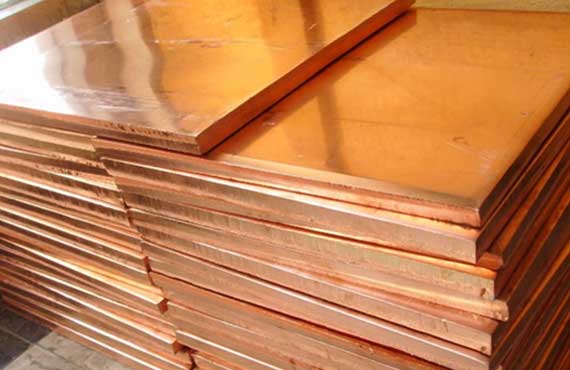

We are engaged in offering our clients with a comprehensive range of Copper Plate. Our range is supplied with optimal quality copper, sourced from reliable vendors of the domain. Widely used in electrical, automotive and other industries, these plates are offered at industry with lowest prices. We offer these copper plates with following specifications:
| 600 x 600 x 3 mm | 10 Kg. App. |
| 600 x 600 x 5 mm | 15 Kg App. |
| 600 x 600 x 6 mm | 21 Kg. App. |
| 600 x 600 x 12 mm | 40 Kg. App. |
In MSEDCL 9 Nos Earthing pits are specified along with copper strip , individual earthing is specified to equipment from earthing Pit.
