High Tension (HT) cables are essential components in the transmission and distribution of electrical power. They are designed to carry high-voltage power across long distances with minimal loss. HT cables, like any other type of electrical infrastructure, require repairs or extensions from time to time. This is where Straight Through Joint Kits come into play. These kits are necessary for properly joining two sections of HT cable and ensuring reliable electrical performance.
A Straight Through Joint Kit is a comprehensive set of components for connecting two lengths of HT cable end to end. The primary goal of this kit is to make the joint as strong and reliable as the original cable. This includes ensuring that the jointed part maintains its mechanical integrity, electrical conductivity, and insulating qualities.

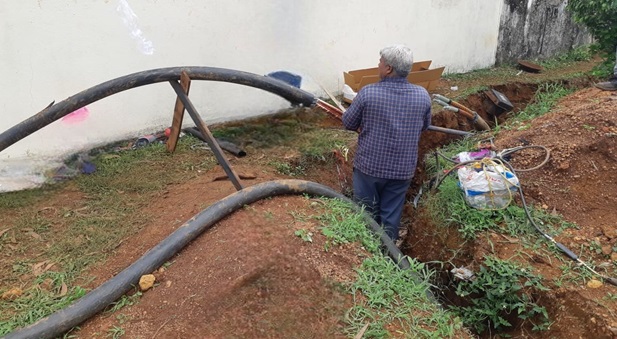

Raychem make Jointing Kit Dealers in India
Typically, a Straight Through Joint Kit for HT cables includes:
Conductive Connector: This component ensures the electrical continuity between the two cable sections. It is usually made of high-conductivity materials like copper or aluminium.
Insulating Material: High-quality insulating tapes or heat-shrinkable tubes that wrap around the joint to provide electrical insulation.

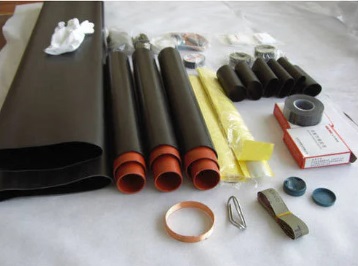

Components of Straight Through Joint Kit
Protective Sheeth: This layer protects the joint from environmental factors such as moisture, dust, and mechanical damage.
Sealing Materials: Sealants or adhesives to prevent the ingress of moisture and other contaminants.
Grounding Components: Ensures proper grounding of the joint to prevent electrical faults.

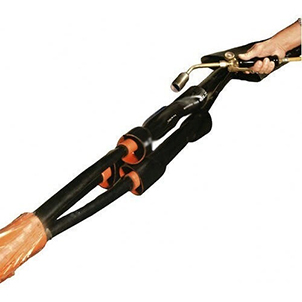

3M Jointing Kit Dealers
Electrical Integrity : Maintaining the electrical stability of the joint is important. The conductive connector ensures that the electrical resistance at the joint is low, reducing power loss and overheating.
Mechanical Strength : The joint must be able to withstand mechanical stresses like tension, compression, and bending. High-quality joint kits ensure that the connection has the same mechanical strength as the original cable.
Insulation : Proper insulation is necessary for preventing electrical failures like short circuits and arcing. The insulating materials in the kit form a strong barrier to electrical leakage.
Evironmental Protection : HT cables are commonly installed in severe areas. The protective sheath and sealing materials protect the joint from moisture, chemicals, and physical harm.

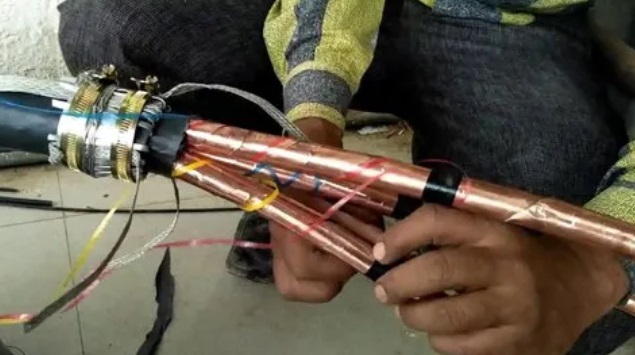

Careful preparation and precision are required when installing a Straight Through Joint Kit. Here's an overview of the process:
1. Preparation: Clean and prepare cable ends for joining. This includes removing the insulation and cleaning the conductors.
2. Connect the conductive connector to the cable conductors. Make sure the connection is secure and tight to reduce resistance.
3. Insulation: Follow the package directions to apply the insulating materials. This procedure is critical for avoiding electrical issues.
Fixing of Jointing Kit Services
4. Seal: Apply sealants and protective coverings to cover the junction. Make sure the joint is properly sealed against environmental conditions.
5. Ground the joint for safety and reliability.
Power Transmission : Joining sections of HT cables in power transmission lines.

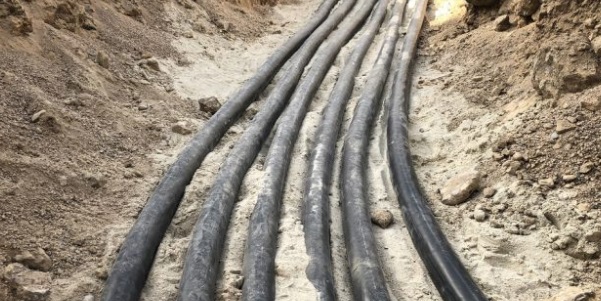

Underground Cables : Repairing or extending underground HT cables. In Substations, Highway road cross, Railway crossing, Long Span Distance cable work
Industrial Installations : Ensuring reliable power supply in industrial facilities. In Industrial substations.
Renewable Energy Projects : Connecting HT cables in wind and solar power installations in Cable work , substation work etc.
Straight Through Joint Kits are required for the Joint cables , repair and extension of high tension wires. They ensure the dependability and safety of power transmission networks by preserving the mechanical and electrical integrity of the joints. These joints operate best when installed properly and with high-quality components. As the need for dependable electrical infrastructure grows, the value of high-quality joint kits cannot be emphasized. Kit is used to joint and make cable in a one length.
Cable Size: 50, 95, 120, 150, 185, 250, 300 sqmm
Voltage level: 11kv, 22kv, 33kv, 66kv, 110kv
Make : Raychem Make, 3M Make
