Manufacturer of Isolators / Stockiest of Over Head Line Materials / Govt Contractors.
We are the one of the Leading Stockiest in Maharastra for M S E D C L Approved Aluminum Conductor, We have very Proper warehouse facility to store bulk quantity of Conductor.
We serve conductor in Drum and also in 2 Km roll , We venders are bounded to supply with accurate specification and prompt Weight ,We carry stock about 1 Cr in our Shiroli Warehouse to cater requirement of Contactors for their Over head line various Projects.
We offer special discounts on bulk purchase of conductor and we also conduct factory inspection of conductor for client as per specification and requirement.
Our products are approved for MSEDCL Tender, DDUGJY, IPDS, INFRA, HVDS Schemes for all type of Conductors.
| Weasel Conductor | Per K/M 128 Kg |
| Racoon Conductor | Per K/M 318 Kg |
| 0.1 Dog Conductor | Per K/M 394 Kg |
| Ant Conductor | Per K/M 145 Kg |
| Gnt Conductor | Per K/M 74 Kg |
| 34 sqmm AAAC Conductor | Per K/M 394 Kg |

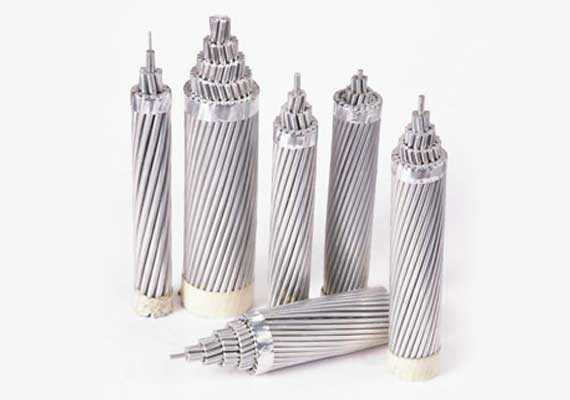

The most common conductors which use transmission line are Aluminum Alloy Conductors. There are various types of sub conductors which use for Aluminum Alloy Conductors are AAAC, AACSR, ABB and ACSR. These types of conductors are use for transmission lines.
In Normal practice of construction of overhead line - Weasal Conductor (Per K/M 128 kg), Racoon Conductor (Per K/M 318 kg), 0.1 Dog Conductor (Per K/M 394 kg), ANT Conductor (Per K/M 145 kg), GNT Conductor (Per K/M 74 kg) are used.
| INDIAN STANDARD (IS 398 PART 2) | ||||
| CODE NAME | AREA (mm2) | SIZE Al/St/Dia. | WEIGHT (Kg/Km) | Current Carrying Capacity at 45oC* (Amp) |
| Mole | 10 | 6/1/1.50 | 43 | 90 |
| Rose | 18 | 6/1/1.96 | 72 | 100 |
| Squirrel | 20 | 6/1/2.11 | 85 | 130 |
| Weasel | 30 | 6/1/2.59 | 128 | 170 |
| Rabbit | 50 | 6/1/3.35 | 214 | 240 |
| Raccoon | 80 | 6/1/4.09 | 320 | 300 |
| Dog | 100 | 6/4.72+7/1.57 | 394 | 360 |
| Wolf | 150 | 30/7/2.59 | 726 | 470 |
| Panther | 200 | 30/7/3.00 | 974 | 560 |
| Zebra | 420 | 54/7/3.18 | 1622 | 860 |
| Moose | 520 | 54/7/3.53 | 1998 | 980 |
| Gopher | 25 | 6/1/2.36 | 106 | 150 |
| Fox | 35 | 6/1/2.79 | 149 | 190 |
| Ferret | 40 | 6/1/3.00 | 171 | 210 |
| Mink | 60 | 6/1/3.66 | 255 | 260 |
| Skunk | 60 | 12/7/2.59 | 464 | 270 |
| Beaver | 70 | 6/1/3.99 | 303 | 290 |
| Horse | 70 | 12/7/2.79 | 538 | 300 |
| Otter | 80 | 6/1/4.22 | 339 | 310 |
| Cat | 95 | 6/1/4.50 | 386 | 340 |
| Hare | 100 | 6/1/4.72 | 425 | 360 |
| Hyena | 100 | 7/4.39 + 7/1.93 | 453 | 360 |
| Cougar | 125 | 18/1/3.05 | 419 | 400 |
| Leopard | 125 | 6/5.28+7/1.75 | 493 | 410 |
| Tiger | 125 | 30/7/2.36 | 603 | 420 |
| Dingo | 150 | 18/1/3.35 | 506 | 450 |
| Caracal | 175 | 18/1/3.61 | 587 | 560 |
| Lynx | 175 | 30/7/2.79 | 842 | 520 |
| Jaguar | 200 | 18/1/3.86 | 671 | 560 |
| Lion | 230 | 30/7/3.18 | 1095 | 610 |
| Bear | 250 | 30/7/3.35 | 1214 | 650 |
| Goat | 320 | 30/7/3.71 | 1489 | 730 |
| Sheep | 370 | 30/7/3.99 | 1723 | 800 |
| Antelope | 370 | 54/7/2.97 | 1414 | 790 |
| Bison | 380 | 54/7/3.00 | 1443 | 800 |
| Deer | 420 | 30/7/4.27 | 972 | 870 |
| Elk | 475 | 30/7/4.50 | 2190 | 930 |
| Camel | 475 | 54/7/3.35 | 1799 | 920 |
